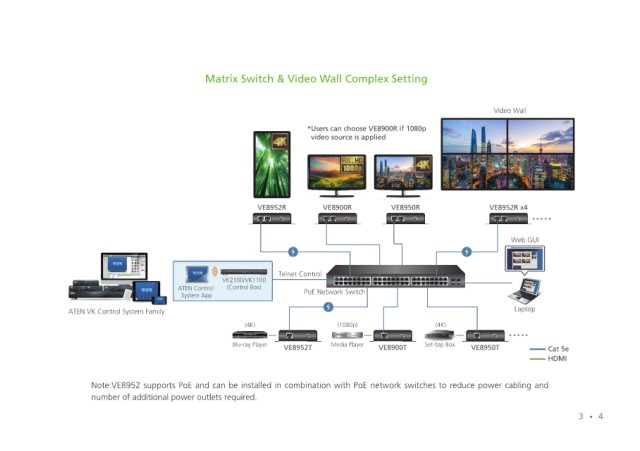

Matrix Switch & Video Wall Complex Setting


                                                                                             Video Wall
                                                          *Users can choose VE8900R if 1080p
                                                            video source is applied







                                                 VE8952R     VE8900R      VE8950R           VE8952R x4

                                                                                                Web GUI


                                                     Telnet Control
                                          VK2100/VK1100
                                  ATEN Control   (Control Box)
                                   System App             PoE Network Switch
              ATEN VK Control System Family                                                      Laptop
                                               (4K)             (1080p)           (4K)

                                            Blu-ray Player     Media Player     Set-top Box
                                                      VE8952T          VE8900T           VE8950T       Cat 5e
                                                                                                       HDMI
                  Note:VE8952 supports PoE and can be installed in combination with PoE network switches to reduce power cabling and
                  number of additional power outlets required.
