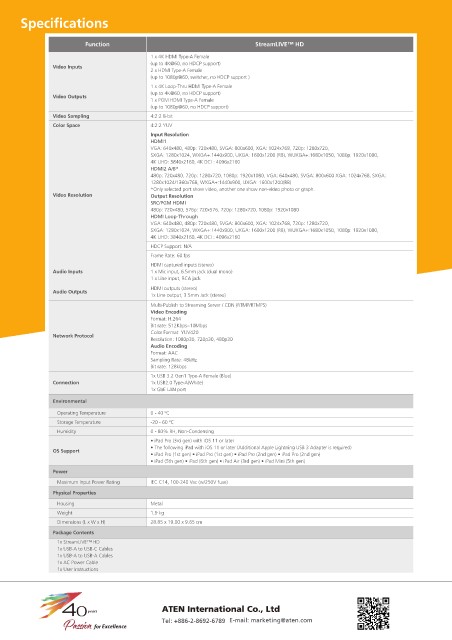

Specifications

Function StreamLIVE™ HD
1 x 4K HDMI Type-A Female
(up to 4K@60, no HDCP support)
Video Inputs
2 x HDMI Type-A Female
(up to 1080p@60, switcher, no HDCP support )
1 x 4K Loop-Thru HDMI Type-A Female
(up to 4K@60, no HDCP support)
Video Outputs
1 x PGM HDMI Type-A Female
(up to 1080p@60, no HDCP support)
Video Sampling 4:2:2 8-bit
Color Space 4:2:2 YUV
Input Resolution
HDMI1
VGA: 640x480, 480p: 720x480, SVGA: 800x600, XGA: 1024x768, 720p: 1280x720,
SXGA: 1280x1024, WXGA+:1440x900, UXGA: 1600x1200 (RB), WUXGA+:1680x1050, 1080p: 1920x1080,
4K UHD: 3840x2160, 4K DCI : 4096x2160
HDMI2 A/B*
480p: 720x480, 720p: 1280x720, 1080p: 1920x1080, VGA: 640x480, SVGA: 800x600 XGA: 1024x768, SXGA:
1280x1024/1360x768, WXGA+:1440x900, UXGA: 1600x1200(RB)
*Only selected port show video, another one show non-video photo or graph.
Video Resolution Output Resolution
SRC/PGM HDMI
480p: 720x480, 576p: 720x576, 720p: 1280x720, 1080p: 1920x1080
HDMI Loop-Through
VGA: 640x480, 480p: 720x480, SVGA: 800x600, XGA: 1024x768, 720p: 1280x720,
SXGA: 1280x1024, WXGA+:1440x900, UXGA: 1600x1200 (RB), WUXGA+:1680x1050, 1080p: 1920x1080,
4K UHD: 3840x2160, 4K DCI : 4096x2160
HDCP Support: N/A
Frame Rate: 60 fps
HDMI captured inputs (stereo)
Audio Inputs 1 x Mic input, 6.5mm jack (dual mono)
1 x Line input, RCA jack
HDMI outputs (stereo)
Audio Outputs
1x Line output, 3.5mm Jack (stereo)
Multi-Publish to Streaming Server / CDN (RTMP/RTMPS)
Video Encoding
Format: H.264
Bit rate: 512Kbps~10Mbps
Color Format: YUV420
Network Protocol
Resolution: 1080p30, 720p30, 480p30
Audio Encoding
Format: AAC
Sampling Rate: 48kHz
Bit rate: 128kbps
1x USB 3.2 Gen1 Type-A Female (Blue)
Connection 1x USB2.0 Type-A(White)
1x GbE LAN port
Environmental
Operating Temperature 0 - 40 ºC
Storage Temperature -20 - 60 ºC
Humidity 0 - 80% RH, Non-Condensing
• iPad Pro (3rd gen) with iOS 11 or later
• The following iPad with iOS 11 or later (Additional Apple Lightning USB 3 Adapter is required)
OS Support
• iPad Pro (1st gen) • iPad Pro (1st gen) • iPad Pro (2nd gen) • iPad Pro (2nd gen)
• iPad (5th gen) • iPad (6th gen) • iPad Air (3rd gen) • iPad Mini (5th gen)
Power
Maximum Input Power Rating IEC C14, 100-240 Vac (w/250V fuse)
Physical Properties
Housing Metal
Weight 1.9 kg
Dimensions (L x W x H) 28.85 x 19.00 x 9.65 cm
Package Contents
1x StreamLIVE™ HD
1x USB-A to USB-C Cables
1x USB-A to USB-A Cables
1x AC Power Cable
1x User Instructions
