P. 3

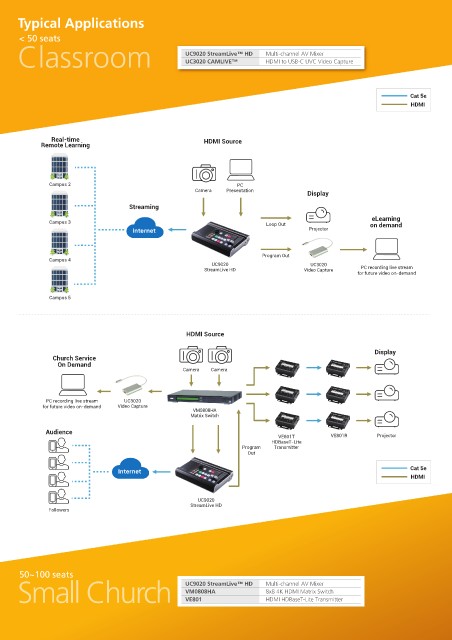

Typical Applications
< 50 seats
Classroom UC9020 StreamLive™ HD Multi-channel AV Mixer
UC3020 CAMLIVE™
HDMI to USB-C UVC Video Capture
Cat 5e
HDMI
Real-time HDMI Source
Remote Learning
Campus 2 PC
Camera Presentation
Display
Streaming
eLearning
Campus 3 Loop Out on demand
Internet Projector
Program Out
Campus 4
UC9020 UC3020
StreamLive HD Video Capture PC recording live stream
for future video on-demand
Campus 5
HDMI Source
Display
Church Service
On Demand
Camera Camera
PC recording live stream UC3020
for future video on-demand Video Capture
VM0808HA
Matrix Switch
Audience
VE801T VE801R Projector
HDBaseT-Lite
Program Transmitter
Out
Internet Cat 5e
HDMI
UC9020
StreamLive HD
Followers
50~100 seats
Small Church UC9020 StreamLive™ HD Multi-channel AV Mixer
VM0808HA
8x8 4K HDMI Matrix Switch
VE801
HDMI HDBaseT-Lite Transmitter
