Page 23 - ATEN Product Series Guide - Presentation Switch Series Guide

Typical

Applications

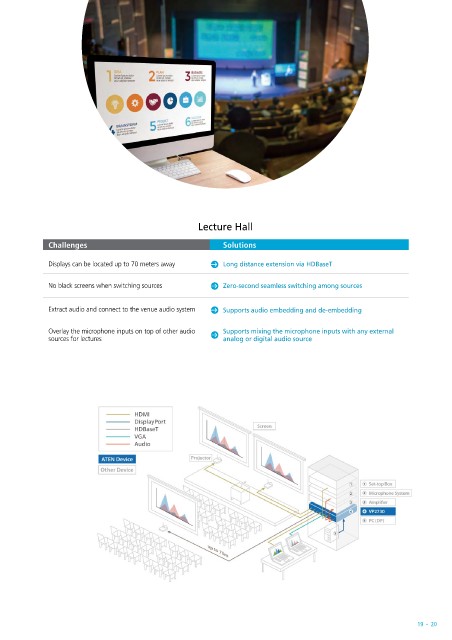

Conference Room with Moderator Lecture Hall

Challenges Solutions Challenges Solutions
Integrate various sources that use different analog/digital A compact device that consolidates multiple source formats
interfaces Displays can be located up to 70 meters away Long distance extension via HDBaseT
Easy content sharing and collaboration between Bi-directional multistreaming enables content to be shared to
on-site and remote participants and from participants remotely No black screens when switching sources Zero-second seamless switching among sources

Meeting moderator needs to manage output displays Moderator Mode lets the moderator discretely access any Extract audio and connect to the venue audio system Supports audio embedding and de-embedding
without interrupting the meeting output display to switch content or change settings

Extract audio and connect to the existing audio system Supports audio embedding and de-embedding Overlay the microphone inputs on top of other audio Supports mixing the microphone inputs with any external
sources for lectures
analog or digital audio source
Overlay the microphone input on top of other audio Supports mixing the microphone inputs with any external
sources for collaboration analog or digital audio source

Control System Compatible
