VP2730

Collaborative Series

7 x 3 Seamless Presentation Matrix Switch with Seamless Switch with Scaler Built-in Audio Mixer
Zero-second switching without any latency while Supports dynamic and condenser microphone
Scaler, Streaming, Audio Mixer, and HDBaseT scaling for the best output resolution ensures input with selectable 48V Phantom Power and
extra smooth presentations. allows microphone input to be mixed with
program audio.
Facilitating Seamless Distance-free Collaboration

Audio
VP2730 is a multi-in-one presentation switch integrating video matrix switch with scaler, streaming, audio mixer, Mixer
HDBaseT extender and analog-to-digital converter functions into one compact device.

With seven multi-format inputs to two HDMI and one HDBaseT outputs, VP2730 empowers larger meetings
and facilitates collaboration between local and remote participants in boardrooms, conference rooms, lecture
halls or distance learning classrooms.

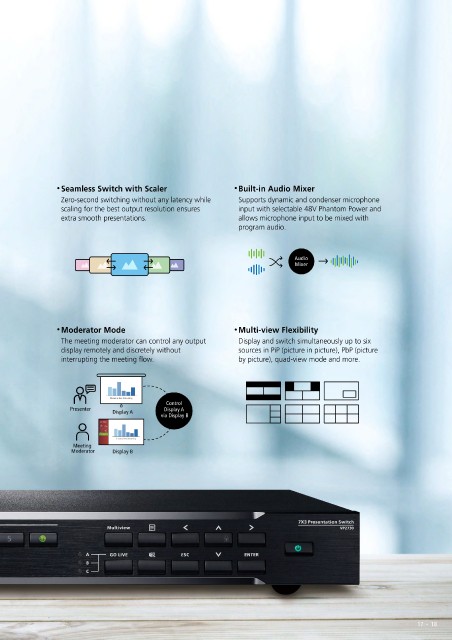

Moderator Mode Multi-view Flexibility
The meeting moderator can control any output Display and switch simultaneously up to six
Remote Site 1
display remotely and discretely without sources in PiP (picture in picture), PbP (picture
Bi-directional Streaming Main Site interrupting the meeting flow. by picture), quad-view mode and more.
Expedite collaboration with bi-directional content Live Internet Distance-free Streaming
streaming. Go live to stream out HD video or
stream in content from a remote site via an Remote Site 2
intuitive web GUI*. Distance-free Streaming
Internet Distance-free Streaming
Control
* 1. Up to five remote sites can connect; Distance-free Streaming Presenter Display A Display A
only one site can stream in at a time. via Display B
2. Streaming out requires a bandwidth
of 2 MB or more
Up to 5 sites Distance-free Streaming
Meeting
Moderator Display B
