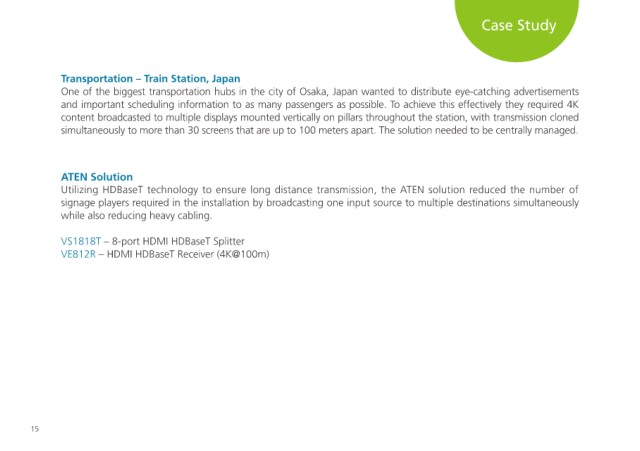

Case Study




            Transportation – Train Station, Japan
            One of the biggest transportation hubs in the city of Osaka, Japan wanted to distribute eye-catching advertisements
            and important scheduling information to as many passengers as possible. To achieve this effectively they required 4K
            content broadcasted to multiple displays mounted vertically on pillars throughout the station, with transmission cloned
            simultaneously to more than 30 screens that are up to 100 meters apart. The solution needed to be centrally managed.




            ATEN Solution
            Utilizing HDBaseT technology to ensure long distance transmission, the ATEN solution reduced the number of
            signage players required in the installation by broadcasting one input source to multiple destinations simultaneously
            while also reducing heavy cabling.

            VS1818T – 8-port HDMI HDBaseT Splitter
            VE812R – HDMI HDBaseT Receiver (4K@100m)
