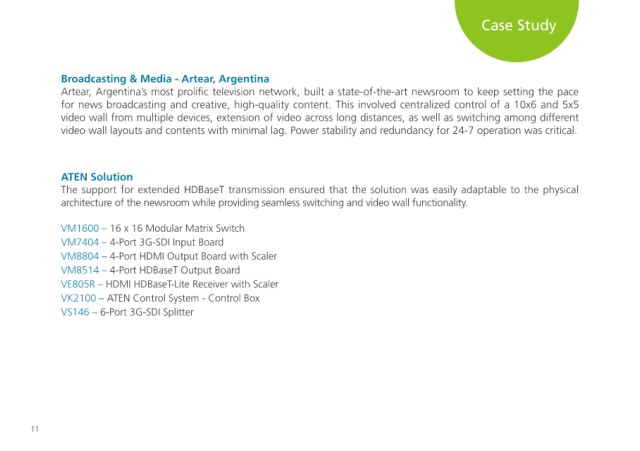

Case Study




            Broadcasting & Media - Artear, Argentina
            Artear, Argentina’s most prolific television network, built a state-of-the-art newsroom to keep setting the pace
            for news broadcasting and creative, high-quality content. This involved centralized control of a 10x6 and 5x5
            video wall from multiple devices, extension of video across long distances, as well as switching among different
            video wall layouts and contents with minimal lag. Power stability and redundancy for 24-7 operation was critical.




            ATEN Solution
            The support for extended HDBaseT transmission ensured that the solution was easily adaptable to the physical
            architecture of the newsroom while providing seamless switching and video wall functionality.

            VM1600 – 16 x 16 Modular Matrix Switch
            VM7404 – 4-Port 3G-SDI Input Board
            VM8804 – 4-Port HDMI Output Board with Scaler
            VM8514 – 4-Port HDBaseT Output Board
            VE805R – HDMI HDBaseT-Lite Receiver with Scaler
            VK2100 – ATEN Control System - Control Box
            VS146 – 6-Port 3G-SDI Splitter
