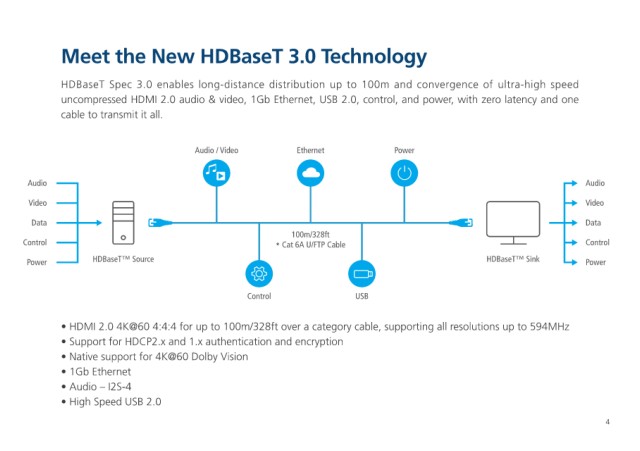

Meet the New HDBaseT 3.0 Technology
HDBaseT Spec 3.0 enables long-distance distribution up to 100m and convergence of ultra-high speed
uncompressed HDMI 2.0 audio & video, 1Gb Ethernet, USB 2.0, control, and power, with zero latency and one
cable to transmit it all.
Audio / Video Ethernet Power
Audio Audio
Video Video
Data Data
100m/328ft
Control * Cat 6A U/FTP Cable Control
Power HDBaseT™ Source HDBaseT™ Sink Power
Control USB
• HDMI 2.0 4K@60 4:4:4 for up to 100m/328ft over a category cable, supporting all resolutions up to 594MHz
• Support for HDCP2.x and 1.x authentication and encryption
• Native support for 4K@60 Dolby Vision
• 1Gb Ethernet
• Audio – I2S-4
• High Speed USB 2.0
