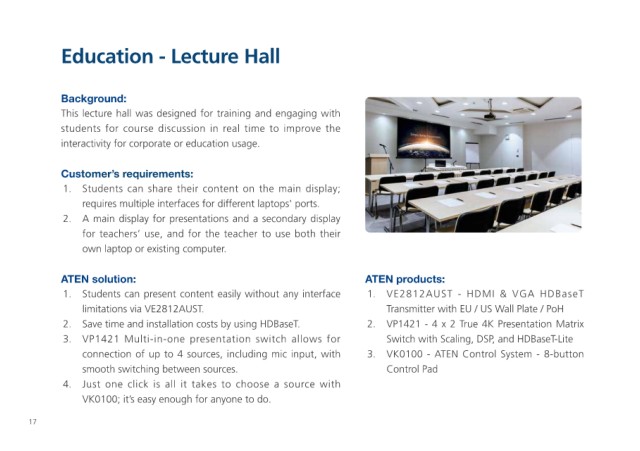

Education - Lecture Hall

Background:
This lecture hall was designed for training and engaging with
students for course discussion in real time to improve the
interactivity for corporate or education usage.

Customer’s requirements:
1. Students can share their content on the main display;
requires multiple interfaces for different laptops' ports.
2. A main display for presentations and a secondary display
for teachers’ use, and for the teacher to use both their
own laptop or existing computer.

ATEN solution: ATEN products:
1. Students can present content easily without any interface 1. VE2812AUST - HDMI & VGA HDBaseT
limitations via VE2812AUST. Transmitter with EU / US Wall Plate / PoH
2. Save time and installation costs by using HDBaseT. 2. VP1421 - 4 x 2 True 4K Presentation Matrix
3. VP1421 Multi-in-one presentation switch allows for Switch with Scaling, DSP, and HDBaseT-Lite
connection of up to 4 sources, including mic input, with 3. VK0100 - ATEN Control System - 8-button
smooth switching between sources. Control Pad
4. Just one click is all it takes to choose a source with
VK0100; it’s easy enough for anyone to do.
