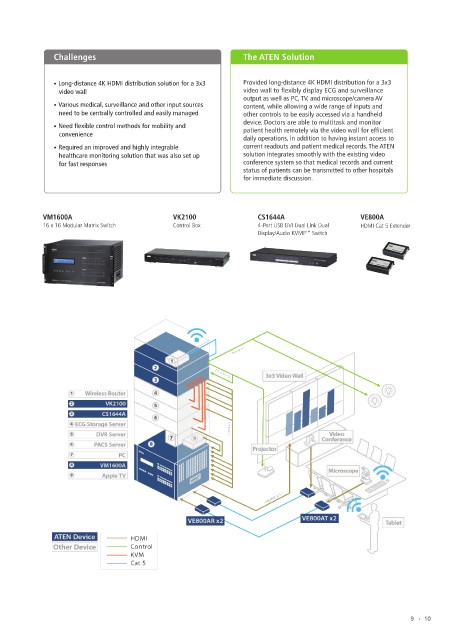

Challenges The ATEN Solution
Challenges

• Long-distance 4K HDMI distribution solution for a 3x3 Provided long-distance 4K HDMI distribution for a 3x3
video wall video wall to flexibly display ECG and surveillance
output as well as PC, TV, and microscope/camera AV
• Various medical, surveillance and other input sources content, while allowing a wide range of inputs and
need to be centrally controlled and easily managed other controls to be easily accessed via a handheld
device. Doctors are able to multitask and monitor
• Need flexible control methods for mobility and patient health remotely via the video wall for efficient
convenience
daily operations, in addition to having instant access to
• Required an improved and highly integrable current readouts and patient medical records. The ATEN
healthcare monitoring solution that was also set up solution integrates smoothly with the existing video
for fast responses conference system so that medical records and current
status of patients can be transmitted to other hospitals
for immediate discussion.

VM1600A VK2100 CS1644A VE800A
16 x 16 Modular Matrix Switch Control Box 4-Port USB DVI Dual Link Dual HDMI Cat 5 Extender
Display/Audio KVMP ™ Switch

02

Control Room

Healthcare Equipment Monitoring and Remote Observation
In order to continue providing the best possible care for its patients, a hospital in Europe decided to redesign its wards into a mix of group
and individual patient rooms that could be conveniently monitored 24/7 from a single, central control room. The healthcare monitoring
system needed to integrate ECG equipment, medical records access, surveillance equipment, and more. This involved the installation of a
3x3 video wall to flexibly display a wide variety of inputs.
