Transportation

The transportation industry is predicted to be one of the fasting growing verticals, especially for high performance
KVM switches and KVM over IP solutions, as network managers in this area need to be able to access and control
multiple computer systems that are often geographically dispersed. Public transport systems face unique challenges
in relation to passenger safety and security, as well as providing uninterrupted services, so there are a number of data

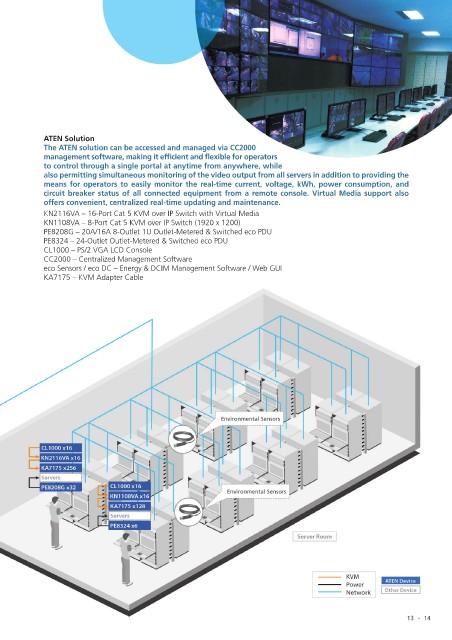

access and management applications in this industry. With network managers usually based in centralized data ATEN Solution
centers at main transport hubs performing administrative tasks while overseeing the consolidation of servers at different The ATEN solution can be accessed and managed via CC2000
locations throughout the transportation system, data management solutions in this vertical need to be especially management software, making it efficient and flexible for operators
stable and secure while offering efficient management and control. to control through a single portal at anytime from anywhere, while
also permitting simultaneous monitoring of the video output from all servers in addition to providing the
Subway System Remote Server Room Management means for operators to easily monitor the real-time current, voltage, kWh, power consumption, and
A subway company owns 2 rail lines; one line has 29 stations and the other 31 stations. Each station has its circuit breaker status of all connected equipment from a remote console. Virtual Media support also
own server room and passenger information system. In order to centralize the control over all the servers in different offers convenient, centralized real-time updating and maintenance.
locations, the subway company was seeking a solution that allows remote management and monitoring of the KN2116VA – 16-Port Cat 5 KVM over IP Switch with Virtual Media
computers, as well as the ability to remotely control the power to each of the servers for optimum system maintenance KN1108VA – 8-Port Cat 5 KVM over IP Switch (1920 x 1200)
and control. PE8208G – 20A/16A 8-Outlet 1U Outlet-Metered & Switched eco PDU
PE8324 – 24-Outlet Outlet-Metered & Switched eco PDU
Challenges: CL1000 – PS/2 VGA LCD Console
• Provide centralized control of servers located in multiple locations CC2000 – Centralized Management Software
• Make it easy and efficient for IT administrators to remotely monitor the video output of multiple servers from eco Sensors / eco DC – Energy & DCIM Management Software / Web GUI
one computer KA7175 – KVM Adapter Cable
• Remotely monitor and manage the power supplied to each server
