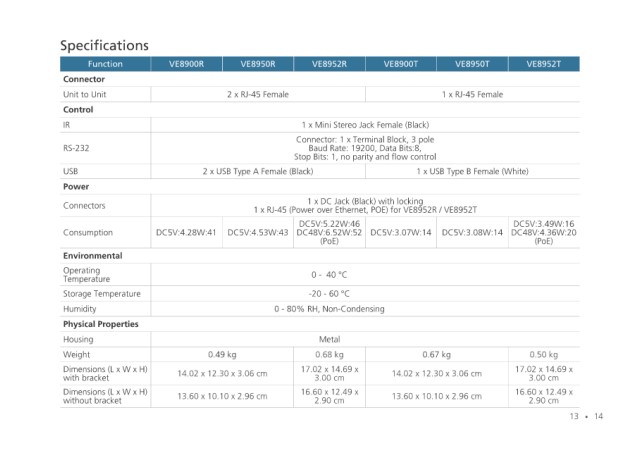

Specifications

Function VE8900R VE8950R VE8952R VE8900T VE8950T VE8952T
Connector
Unit to Unit 2 x RJ-45 Female 1 x RJ-45 Female
Control
IR 1 x Mini Stereo Jack Female (Black)
Connector: 1 x Terminal Block, 3 pole
RS-232 Baud Rate: 19200, Data Bits:8,
Stop Bits: 1, no parity and flow control
USB 2 x USB Type A Female (Black) 1 x USB Type B Female (White)
Power
1 x DC Jack (Black) with locking
Connectors
1 x RJ-45 (Power over Ethernet, POE) for VE8952R / VE8952T
DC5V:5.22W:46 DC5V:3.49W:16
Consumption DC5V:4.28W:41 DC5V:4.53W:43 DC48V:6.52W:52 DC5V:3.07W:14 DC5V:3.08W:14 DC48V:4.36W:20
(PoE) (PoE)
Environmental
Operating 0 - 40 °C
Temperature
Storage Temperature -20 - 60 °C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.49 kg 0.68 kg 0.67 kg 0.50 kg
Dimensions (L x W x H) 14.02 x 12.30 x 3.06 cm 17.02 x 14.69 x 14.02 x 12.30 x 3.06 cm 17.02 x 14.69 x
with bracket 3.00 cm 3.00 cm
Dimensions (L x W x H) 13.60 x 10.10 x 2.96 cm 16.60 x 12.49 x 13.60 x 10.10 x 2.96 cm 16.60 x 12.49 x
without bracket 2.90 cm 2.90 cm
