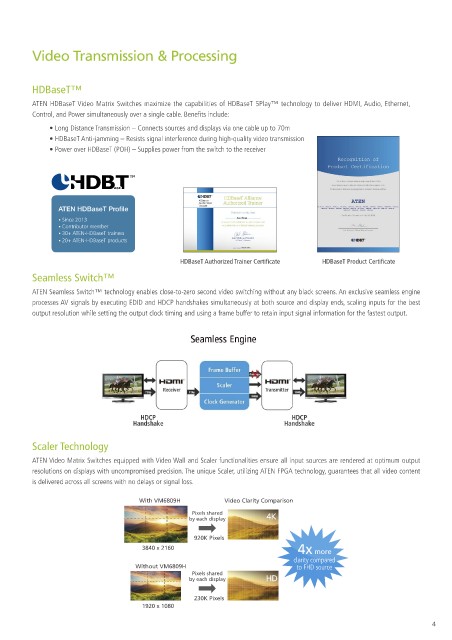

Video Transmission & Processing

HDBaseT™
ATEN HDBaseT Video Matrix Switches maximize the capabilities of HDBaseT 5Play™ technology to deliver HDMI, Audio, Ethernet,
Control, and Power simultaneously over a single cable. Benefits include:
• Long Distance Transmission – Connects sources and displays via one cable up to 70m
• HDBaseT Anti-jamming – Resists signal interference during high-quality video transmission
• Power over HDBaseT (POH) – Supplies power from the switch to the receiver

ATEN HDBaseT Profile
▪ Since 2013
▪ Contributor member
▪ 30+ ATEN-HDBaseT trainers
▪ 20+ ATEN-HDBaseT products

HDBaseT Authorized Trainer Certificate HDBaseT Product Certificate

Seamless Switch™
ATEN Seamless Switch™ technology enables close-to-zero second video switching without any black screens. An exclusive seamless engine
processes AV signals by executing EDID and HDCP handshakes simultaneously at both source and display ends, scaling inputs for the best
output resolution while setting the output clock timing and using a frame buffer to retain input signal information for the fastest output.

Scaler Technology

ATEN Video Matrix Switches equipped with Video Wall and Scaler functionalities ensure all input sources are rendered at optimum output
resolutions on displays with uncompromised precision. The unique Scaler, utilizing ATEN FPGA technology, guarantees that all video content
is delivered across all screens with no delays or signal loss.

With VM6809H Video Clarity Comparison
Pixels shared
by each display 4K

920K Pixels
3840 x 2160
4x more
clarity compared
Without VM6809H to FHD source
Pixels shared
by each display HD

230K Pixels
1920 x 1080

4
