HDBaseT™ Series

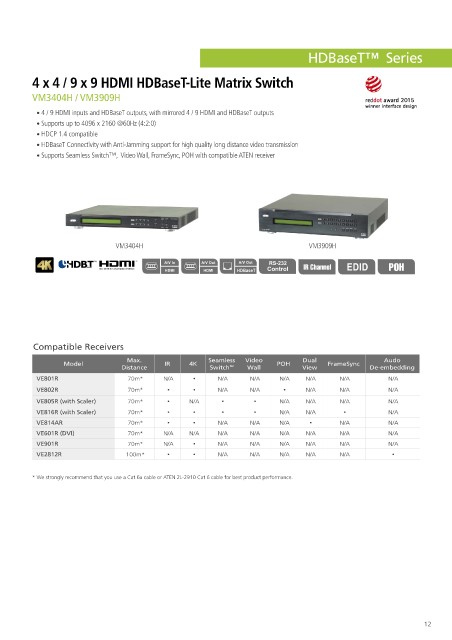

4 x 4 / 9 x 9 HDMI HDBaseT-Lite Matrix Switch

VM3404H / VM3909H

• 4 / 9 HDMI inputs and HDBaseT outputs, with mirrored 4 / 9 HDMI and HDBaseT outputs
• Supports up to 4096 x 2160 @60Hz (4:2:0)
• HDCP 1.4 compatible
• HDBaseT Connectivity with Anti-Jamming support for high quality long distance video transmission
• Supports Seamless Switch™, Video Wall, FrameSync, POH with compatible ATEN receiver

VM3404H VM3909H

A/V In A/V Out A/V Out
HDMI HDMI HDBaseT

Compatible Receivers

Max. Seamless Video Dual Audo
Model IR 4K POH FrameSync
Distance Switch ™ Wall View De-embedding
VE801R 70m* N/A • N/A N/A N/A N/A N/A N/A
VE802R 70m* • • N/A N/A • N/A N/A N/A
VE805R (with Scaler) 70m* • N/A • • N/A N/A N/A N/A
VE816R (with Scaler) 70m* • • • • N/A N/A • N/A
VE814AR 70m* • • N/A N/A N/A • N/A N/A
VE601R (DVI) 70m* N/A N/A N/A N/A N/A N/A N/A N/A
VE901R 70m* N/A • N/A N/A N/A N/A N/A N/A
VE2812R 100m* • • N/A N/A N/A N/A N/A •

* We strongly recommend that you use a Cat 6a cable or ATEN 2L-2910 Cat 6 cable for best product performance.
