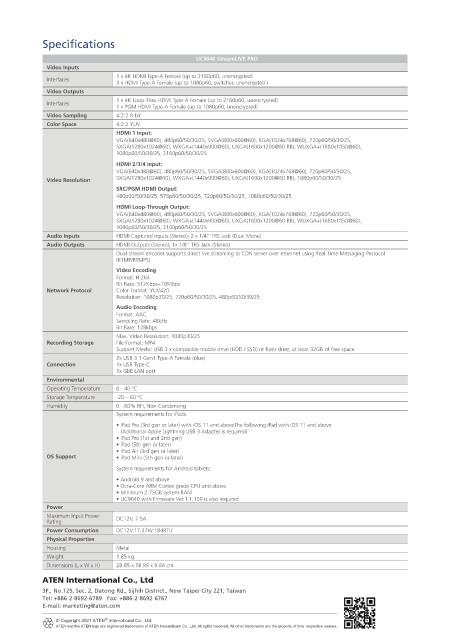

Specifications

                                                     UC9040 StreamLIVE PRO
                                                    UC9040 StreamLIVE PRO
             Video Inputs
                                1 x 4K HDMI Type-A Female (up to 2160p60, unencrypted)
             Interfaces
                                3 x HDMI Type-A Female (up to 1080p60, switcher, unencrypted )
             Video Outputs
                                1 x 4K Loop-Thru HDMI Type-A Female (up to 2160p60, unencrypted)
             Interfaces
                                1 x PGM HDMI Type-A Female (up to 1080p60, unencrypted)
             Video Sampling     4:2:2 8-bit
             Color Space        4:2:2 YUV
                                HDMI 1 Input:
                                VGA(640x480@60), 480p60/50/30/25, SVGA(800x600@60), XGA(1024x768@60), 720p60/50/30/25,
                                SXGA(1280x1024@60), WXGA+(1440x900@60), UXGA(1600x1200@60 RB), WUXGA+(1680x1050@60),
                                1080p60/50/30/25, 2160p60/50/30/25
                                HDMI 2/3/4 Input:
                                VGA(640x480@60), 480p60/50/30/25, SVGA(800x600@60), XGA(1024x768@60), 720p60/50/30/25,
             Video Resolution   SXGA(1280x1024@60), WXGA+(1440x900@60), UXGA(1600x1200@60 RB), 1080p60/50/30/25
                                SRC/PGM HDMI Output:
                                480p60/50/30/25, 576p60/50/30/25, 720p60/50/30/25, 1080p60/50/30/25
                                HDMI Loop-Through Output:
                                VGA(640x480@60), 480p60/50/30/25, SVGA(800x600@60), XGA(1024x768@60), 720p60/50/30/25,
                                SXGA(1280x1024@60), WXGA+(1440x900@60), UXGA(1600x1200@60 RB), WUXGA+(1680x1050@60),
                                1080p60/50/30/25, 2160p60/50/30/25
             Audio Inputs       HDMI Captured Inputs (Stereo); 2 x 1/4” TRS Jack (Dual Mono)
             Audio Outputs      HDMI Outputs (Stereo); 1x 1/8” TRS Jack (Stereo)
                                Dual-stream encoder supports direct live streaming to CDN server over ethernet using Real Time Messaging Protocol
                                (RTMP/RTMPS)
                                Video Encoding
                                Format: H.264
                                Bit Rate: 512Kbps~10Mbps
             Network Protocol   Color Format: YUV420
                                Resolution: 1080p30/25, 720p60/50/30/25, 480p60/50/30/25
                                Audio Encoding
                                Format: AAC
                                Sampling Rate: 48kHz
                                Bit Rate: 128kbps
                                Max. Video Resolution: 1080p30/25
             Recording Storage  File Format: MP4
                                Support Media: USB 3.x compatible mobile drive (HDD / SSD) or flash drive, at least 32GB of free space
                                2x USB 3.1 Gen1 Type-A Female (blue)
             Connection         1x USB Type-C
                                1x GbE LAN port
             Environmental
             Operating Temperature  0 - 40 ºC
             Storage Temperature  -20 – 60 ºC
             Humidity           0 - 80% RH, Non-Condensing
                                System requirements for iPads:
                                • iPad Pro (3rd gen or later) with iOS 11 and aboveThe following iPad with iOS 11 and above
                                   (Additional Apple Lightning USB 3 Adapter is required):
                                • iPad Pro (1st and 2nd gen)
                                • iPad (5th gen or later)
                                • iPad Air (3rd gen or later)
             OS Support         • iPad Mini (5th gen or later)
                                System requirements for Android tablets:
                                • Android 9 and above
                                • Octa-Core ARM Cortex grade CPU and above
                                • Minimum 2.75GB system RAM
                                • UC9040 with Firmware Ver.1.1.109 is also required
             Power
             Maximum Input Power
             Rating             DC12V, 7.5A
             Power Consumption  DC12V:17.37W:184BTU
             Physical Properties
             Housing            Metal
             Weight             1.85 kg
             Dimensions (L x W x H)  28.85 x 18.99 x 9.66 cm
