Page 9 - ATEN Product Series Guide - Over IP Data Center Control Solutions

E PS/2 / USB KVM Switch

CS Series

The CS Series are analog KVM switches with dual

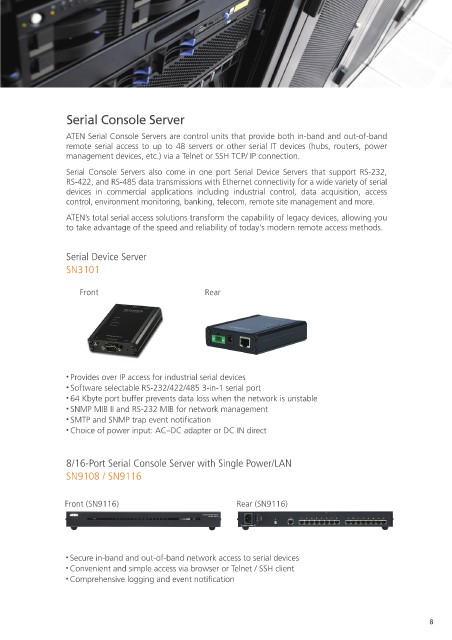

interface support for computers/consoles with PS/2 or Serial Console Server
USB keyboards and mice. Supports additional operation
systems – Linux, Solaris, Mac – along with Windows. ATEN Serial Console Servers are control units that provide both in-band and out-of-band
Models feature a user-friendly interface and convenient remote serial access to up to 48 servers or other serial IT devices (hubs, routers, power
user management and permissions. management devices, etc.) via a Telnet or SSH TCP/ IP connection.

Serial Console Servers also come in one port Serial Device Servers that support RS-232,
Special Features RS-422, and RS-485 data transmissions with Ethernet connectivity for a wide variety of serial
devices in commercial applications including industrial control, data acquisition, access
• Highly scalable with multiplatform support in addition to daisy chain support: control, environment monitoring, banking, telecom, remote site management and more.
• USB port enables a HUB function which can help to connect flash memory, touch panels etc; can
also be used outside the server room environment. ATEN’s total serial access solutions transform the capability of legacy devices, allowing you
• Exclusive ATEN Video DynaSync technology eliminates boot-up display problems to take advantage of the speed and reliability of today's modern remote access methods.

Serial Device Server
SN3101

F Cat 5 Matrix KVM Switch with Multiple Consoles Front Rear

KM Series

The KM series of matrix KVM switches allow flexible
expansion with cascade functionality up to 3 levels
from the master switch. Models have nine consoles
which can control 32 servers independently and
simultaneously. These are the first analog KVM switches • Provides over IP access for industrial serial devices
equipped with audio capabilities and multimedia • Software selectable RS-232/422/485 3-in-1 serial port
support. Other features like redundant power supply • 64 Kbyte port buffer prevents data loss when the network is unstable
ensure high reliability of operation. • SNMP MIB II and RS-232 MIB for network management
• SMTP and SNMP trap event notification
• Choice of power input: AC–DC adapter or DC IN direct
Special Features
• Multi party audio transmission feature allows more users access to the same KVM port, so that
the users will be able to hear audio playback 8/16-Port Serial Console Server with Single Power/LAN
• Virtual Media can be used to install software even when the user is away from the server; USB
and other storage media can be mapped to a remote server smoothly and remotely from SN9108 / SN9116
anywhere in the world, reducing the burden on IT managers
• Auto Signal Compensation (ASC) assures optimum video resolutions for distances up to 300 m Front (SN9116) Rear (SN9116)
between computers and consoles – no DIP switch setting required

* Not all models support all special features.
• Secure in-band and out-of-band network access to serial devices
• Convenient and simple access via browser or Telnet / SSH client
• Comprehensive logging and event notification

7 8
