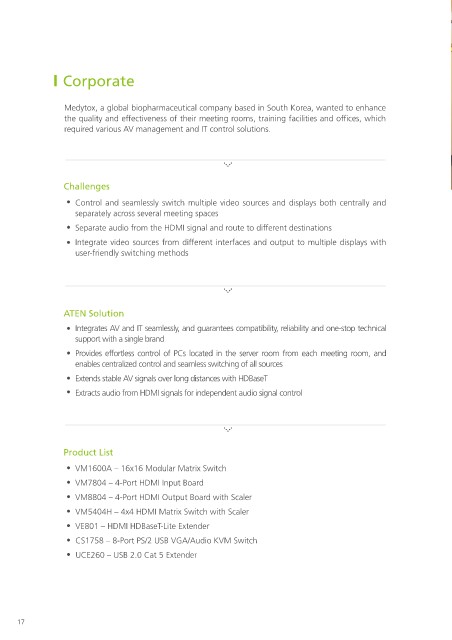

Corporate

Medytox, a global biopharmaceutical company based in South Korea, wanted to enhance
the quality and effectiveness of their meeting rooms, training facilities and offices, which
required various AV management and IT control solutions.

Challenges
• Control and seamlessly switch multiple video sources and displays both centrally and
separately across several meeting spaces

• Separate audio from the HDMI signal and route to different destinations
• Integrate video sources from different interfaces and output to multiple displays with
user-friendly switching methods Solution
Setup

ATEN Solution
• Integrates AV and IT seamlessly, and guarantees compatibility, reliability and one-stop technical
support with a single brand
• Provides effortless control of PCs located in the server room from each meeting room, and
enables centralized control and seamless switching of all sources
• Extends stable AV signals over long distances with HDBaseT

• Extracts audio from HDMI signals for independent audio signal control

Product List
• VM1600A – 16x16 Modular Matrix Switch

• VM7804 – 4-Port HDMI Input Board
• VM8804 – 4-Port HDMI Output Board with Scaler
• VM5404H – 4x4 HDMI Matrix Switch with Scaler

• VE801 – HDMI HDBaseT-Lite Extender
• CS1758 – 8-Port PS/2 USB VGA/Audio KVM Switch
• UCE260 – USB 2.0 Cat 5 Extender
