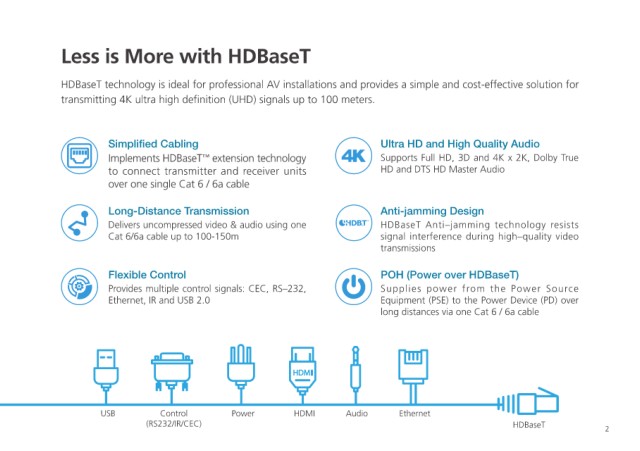

Less is More with HDBaseT


            HDBaseT technology is ideal for professional AV installations and provides a simple and cost-effective solution for
            transmitting 4K ultra high definition (UHD) signals up to 100 meters.



                     Simplified Cabling                                 Ultra HD and High Quality Audio
                     Implements HDBaseT  extension technology           Supports Full HD, 3D and 4K x 2K, Dolby True
                                       ™
                     to connect transmitter and receiver units          HD and DTS HD Master Audio
                     over one single Cat 6 / 6a cable

                     Long-Distance Transmission                         Anti-jamming Design
                     Delivers uncompressed video & audio using one      HDBaseT Anti–jamming technology resists
                     Cat 6/6a cable up to 100-150m                      signal interference during high–quality video
                                                                        transmissions

                     Flexible Control                                   POH (Power over HDBaseT)
                     Provides multiple control signals: CEC, RS–232,    Supplies power from the Power Source
                     Ethernet, IR and USB 2.0                           Equipment (PSE) to the Power Device (PD) over
                                                                        long distances via one Cat 6 / 6a cable










                    USB        Control      Power       HDMI     Audio     Ethernet
                            (RS232/IR/CEC)                                                      HDBaseT           2
