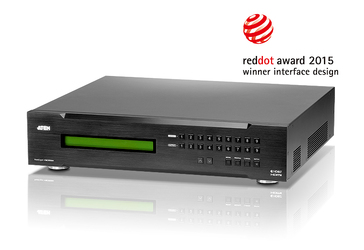

VM3404H / VM3909H
4K HDBaseT Matrix-Switches
- •
Up to 4K @60Hz
- •
8 / 18 connection profiles
- •
Compatible with VE805R
- •
4 / 9 in- and 4 / 9 output ports
- •
HDMI over a single Cat5e/6 cable
- •
WebGUI, serial, infrared and Telnet
- •
Recommended low skew cables: 2L-2801, 2L-2901
Learn more
|
 |
|
VE805R - HDMI HDBaseT-Lite Receiver with Scaler and videowall function
Learn more |
- •
Full HD up to 70m
- •
Videowall function
- •
Scale up to Full HD
- •
Seamless switching technology: < 0,1 seconds
- •
Recommended low skew cables: 2L-2801, 2L-2901
|
| Selection of ATEN videowall matrix switches |
|
VM3404H / VM3909H |
VM5404H / VM5808H |
VM6404H |
| Interface |
RJ-45, HDMI |
HDMI |
HDMI |
| Scaler |
*Up to Full HD |
Up to Full HD |
Up to 4K @60Hz |
| Seamless switching |
*< 0.1 sec |
< 0.1 sec |
< 0.1 sec |
| Input x Output |
4 x 4 / 9 x 9 |
4 x 4 / 8 x 8 |
4 x 4 |
| Videowall |
*Up to 4 / 9 displays
|
Up to 4 / 8 displays
|
Up to 4 displays
|
| Connection profiles |
Up to 8 / 18 |
Up to 8 / 16 |
Up to 8 |
| Resolution |
Up to 4K @60Hz (40m)
Up to Full HD (70m) |
Up to Full HD (15m) |
Up to 4K @60Hz (15m) |
|
Learn more |
Learn more |
Learn more |
| * Combine with ATEN's VE805R HDBaseT Lite extender to enable the videowall and Seamless switching functions. |
|

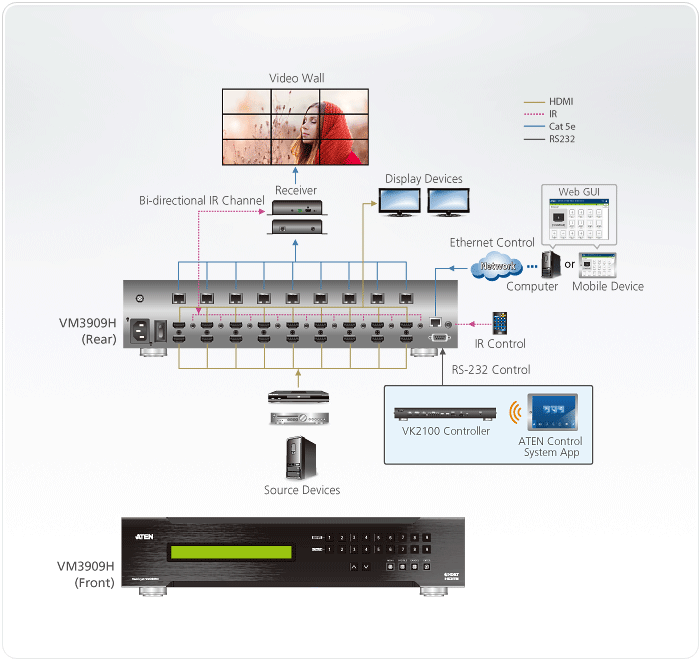

VM3404H / VM3909H - Setup Diagram
|
