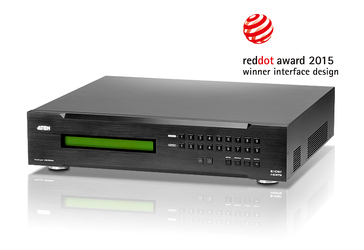

VM3404H / VM3909H 4K HDBaseT Matrix-Switches
- •
bis zu 4K @60Hz
- •
8 / 18 Verbindungsprofile
- •
Kompatible mit
VE805R
- •
4/9 Ein- und
4/9 Ausgänge
- •
HDMI über Single Cat5e/6 Kabel
- •
Steuerung per WebGUI, serieller und
Infrarot-Schnittstelle sowie Telnet
- •
Empfohlene Low Skew Kabel: 2L-2801, 2L-2901
Erfahren Sie mehr
|
|
VE805R - HDMI HDBaseT-Lite Empfänger mit Skalierung und Videowall-Funktion
Erfahren Sie mehr |
- •
Full HD bis zu 70m
- •
Videowall-Funktion
- •
Skalierung bis zu Full HD
- •
Seamless switching Technologie: < 0,1 Sekunden
- •
Empfohlene Low Skew Kabel: 2L-2801, 2L-2901
|
Auswahl der ATEN Videowall Matrix-Switches |
|
VM3404H / VM3909H |
VM5404H / VM5808H |
VM6404H |
Anschluss |
RJ-45, HDMI |
HDMI |
HDMI |
Skalierung |
*Bis zu Full HD |
Bis zu Full HD |
Bis zu 4K @60Hz |
Seamless switching |
*< 0.1 sek |
< 0.1 sek |
< 0.1 sek |
Eingang x Ausgang |
4 x 4 / 9 x 9 |
4 x 4 / 8 x 8 |
4 x 4 |
Videowall |
*Bis zu 4 / 9 Displays
|
Bis zu 4 / 8 Displays
|
Bis zu 4 Displays
|
Verbindungsprofile |
Bis zu 8 / 18 |
Bis zu 8 / 16 |
Bis zu 8 |
Auflösung |
Bis zu 4K @60Hz (40m) Bis zu Full HD (70m) |
Bis zu Full HD (15m) |
Bis zu 4K @60Hz (15m) |
|
Erfahren Sie mehr |
Erfahren Sie mehr |
Erfahren Sie mehr |
* Kombinieren sie diese mit ATEN's VE805R HDBaseT Lite extender, um die Videowall- und Seamless switching-Funktion zu aktivieren. |
|

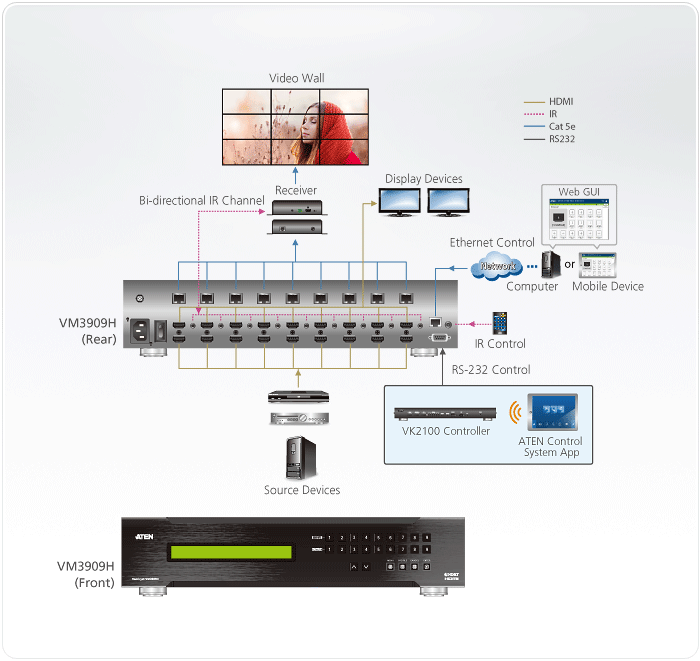

VM3404H / VM3909H - Installationsdiagramm
|
